PC Cooler CPU Cooler Fan Dual Tower 4 Heat Pipe Installing LGA2011 x79 x99 E5 2066 115x 1200 1700 i5 AMD Rapid Heat dissipation

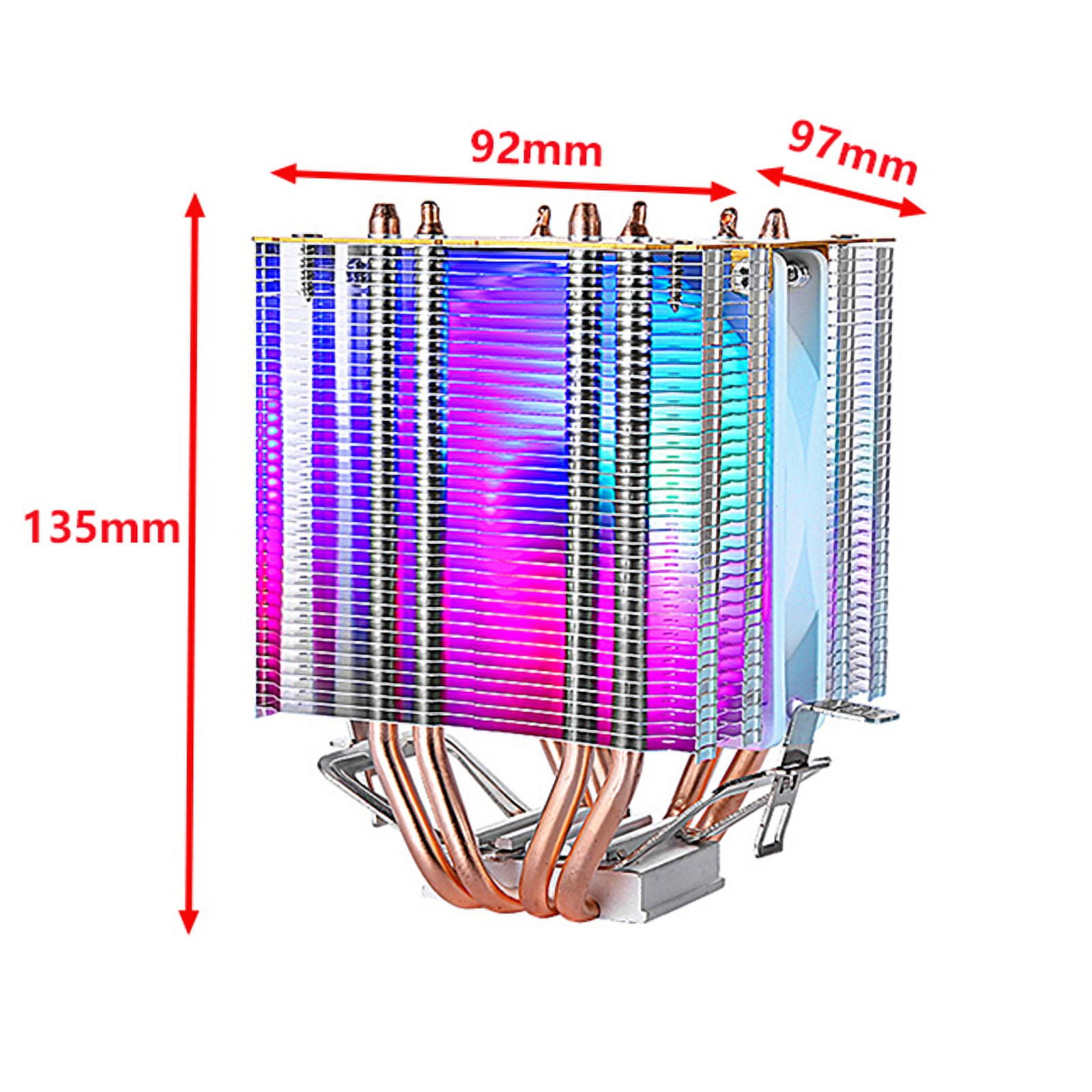

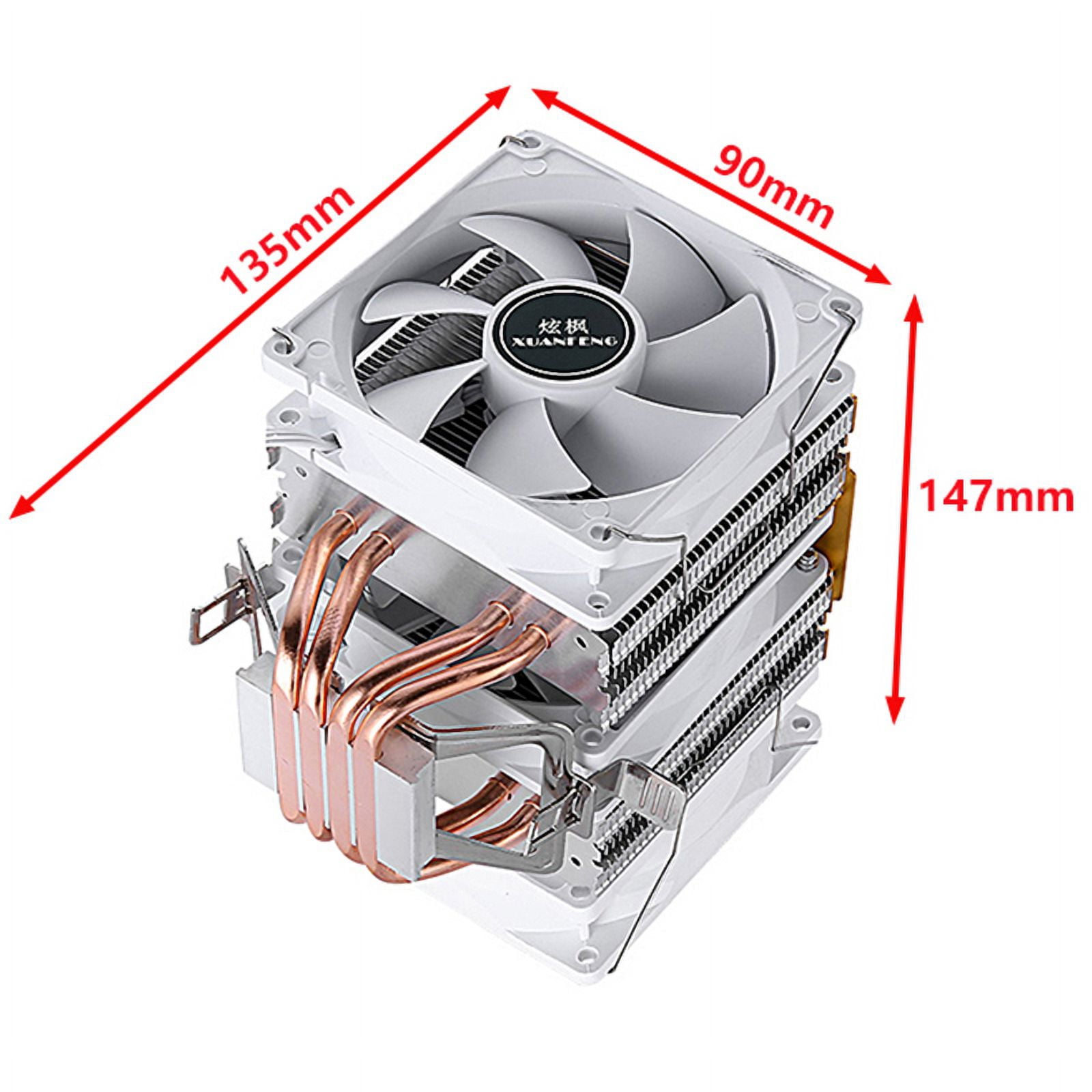

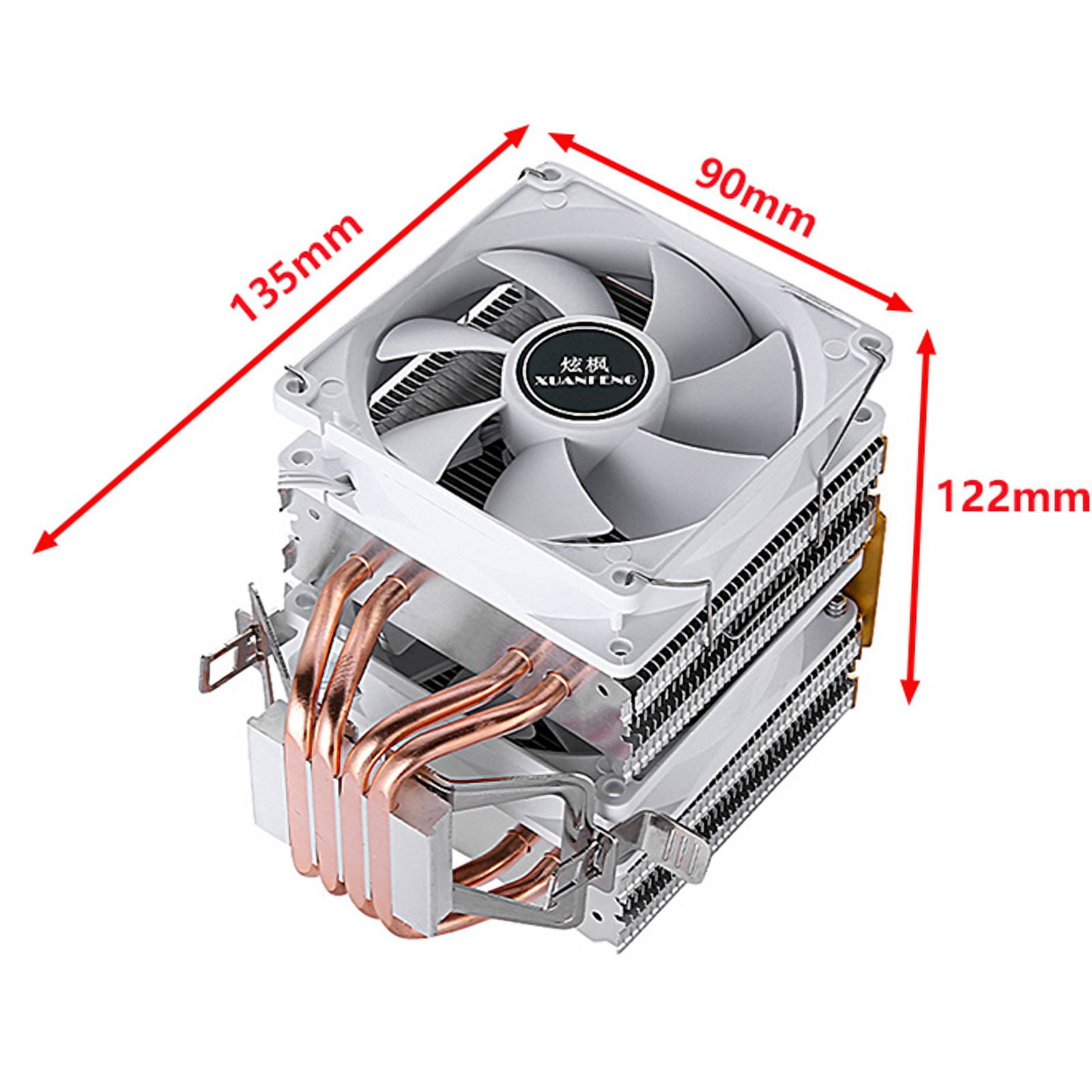

<p></p> <p>Product brand: XUANFENG<br><br></p> <p>Product name: CPU cooler fan<br><br></p> <p>4 Heat pipes 1-Fan Product size: 92 (length) * 97 (width) * 135 (height) mm<br><br></p> <p>4 Heat pipes 2-Fan Product size: 90 (length) * 122 (width) * 135 (height) mm<br><br></p> <p>4 Heat pipes 3-Fan Product size: 90 (length) * 147 (width) * 135 (height) mm<br><br></p> <p>Fan size: 90 * 90 * 25mm<br><br></p> <p>Heat pipe specification: 6mm * 4 pieces<br><br></p> <p>3-wire speed: 2000 RPM ± 10%<br><br></p> <p>4-wire speed: 800-2000 RPM ± 10%<br><br></p> <p>3-wire current: 0.18A without lamp, 0.28A with lamp ± 10%<br><br></p> <p>4-wire current: 0.1A without lamp, 0.2A with lamp ± 10%<br><br></p> <p>3-wire power: 2W without light, 3.5W with light ± 10%<br><br></p> <p>4-wire power: 1W without light, 2.5W with light ± 10%<br><br></p> <p>Noise control: 25dBA<br><br></p> <p>Air volume: 60CFM (maximum)<br><br></p> <p>(The above data is for one fan. If there are multiple fans (air volume, noise, current, power), the data will increase.)<br><br></p> <p>Fan bearings: hydraulic bearings<br><br></p> <p>Working voltage: DC 12V<br><br></p> <p>Process materials: copper and aluminum<br><br></p> <p>Working life: 50000 hours<br><br></p> <p>Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)<br><br></p> <p>Fan wire length: 30CM ± 10%<br><br></p> <p>Packaging method: boxed<br><br></p> <p>Note:<br><br></p> <p>Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.<br><br></p> <p>Due to differences in lighting, angle, and display, images may not reflect the actual color of the item<br><br></p> <p>The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.<br><br></p> <p></p> <p>Socket:<br><br></p> <p>For Intel: LGA:775/1150/1151/1155/1156/1200/1700/1356/1366 (i3 i5 i7)<br><br></p> <p>For Intel: LGA:2011 x79 x99 E5 x299 2099 2066<br><br></p> <p>For AMD: AM4/AM2+/AM2/AM3+/FM1/FM2/FM2+<br><br></p> <p>(For AMD, the bracket on the motherboard needs to be retained, just attach the cooler.)<br><br></p> <p>You can choose one of the following two types of brackets that is suitable for installing the motherboard<br><br></p> <p>Regarding the selection of interface types<br><br></p> <p>3Pin or 4Pin interfaces are universal and can be installed without worrying about interface types<br><br></p> <p>Fixed speed type: 3-pin fan, fixed speed, large air volume, good heat dissipation, but there may be relatively slight wind noise<br><br></p> <p>Temperature control board: The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which is energy-saving and silent. Extend service life! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all motherboards)<br><br></p> <p>The following is a tutorial on installing a CPU cooling fan for the LAG: 2011/2066/2099/X79/X99/E5/E3/X299 slot. The product in the picture may be different from the one you purchased, but the installation method is the same.<br><br></p> <p><br><br></p> <p></p>
