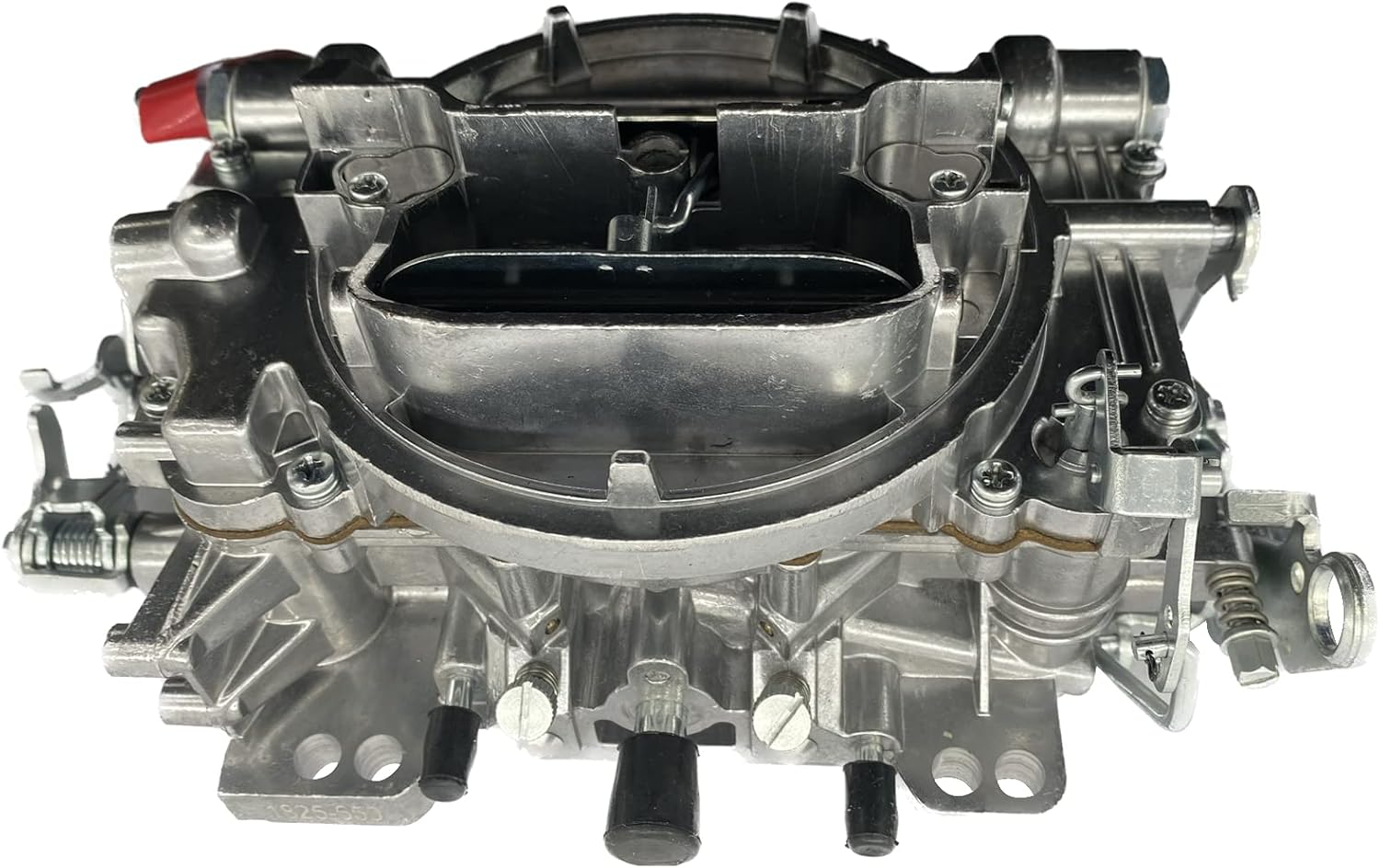

1825 18025 4 Barrel Carburetor Replacement for Thunder AVS Carburetor 650 CFM Satin Finish Off Road Square Bore(Manual Choke)

Note: Carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your carburetor will damage your carburetor . Flange Type: Square Bore Body Material: Aluminum Body Color: Satin Finish Choke Type: Manual Package parameters: The products are packed in cartons of 13.19 '' *8.66'' *7.09 ''.(No installation instructions)

• [Product parameters]: Choke:Manual Primary Jet Diameter:0.095 in Secondary Jet Diameter:0.098 in
• [Fitment]:The carburetor is ideal for a variety of small and large engines, whether biplane or single plane intake manifolds.Including EPS, RPM, RPM Air Gap, Torker II and other similar design brands.
• [Function]: With new calibration, fuel atomization eliminates flat spots encountered when the carburetor transits from idle speed to full throttle. Improve non idle and cruise performance.
• [Note]:Carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your carburetor will damage your carburetor .You need to use a new fuel filter between the carburetor and the fuel pump.
• [Package includes]:1*carburetor,2*fuel filter,1*fuel line,1*Air cleaner stud,4*clamps,1*Square-bore base gasket,1*Air horn gasket,1*Hex nut,2*Vacuum caps,1*Vacuum “T”,1*Throttle cable ball end stud.Other necessary components.
